Product Detail

Details:

RAPTOR R STYLING. PRO SCALE PERFORMANCE.

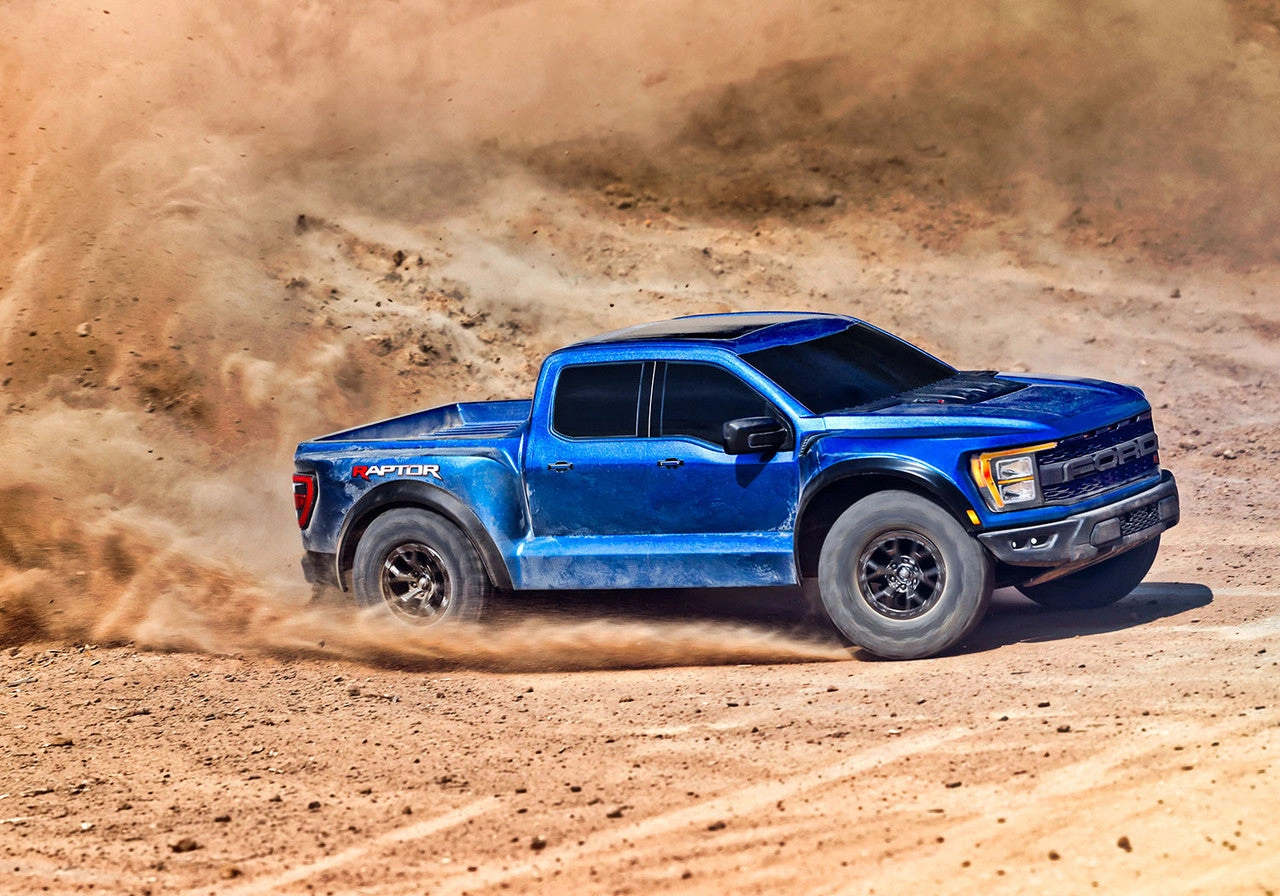

The Traxxas Raptor R is the newest member of the innovative Traxxas Pro Scale lineup. Superb scale detail and proportion combine with 4X4 traction and extreme Velineon brushless horsepower to faithfully capture the Raptor R driving experience. Only Traxxas Pro Scale delivers both the exacting realism and unbeatable speed and durability performance drivers demand.

PRO SCALE DESIGN

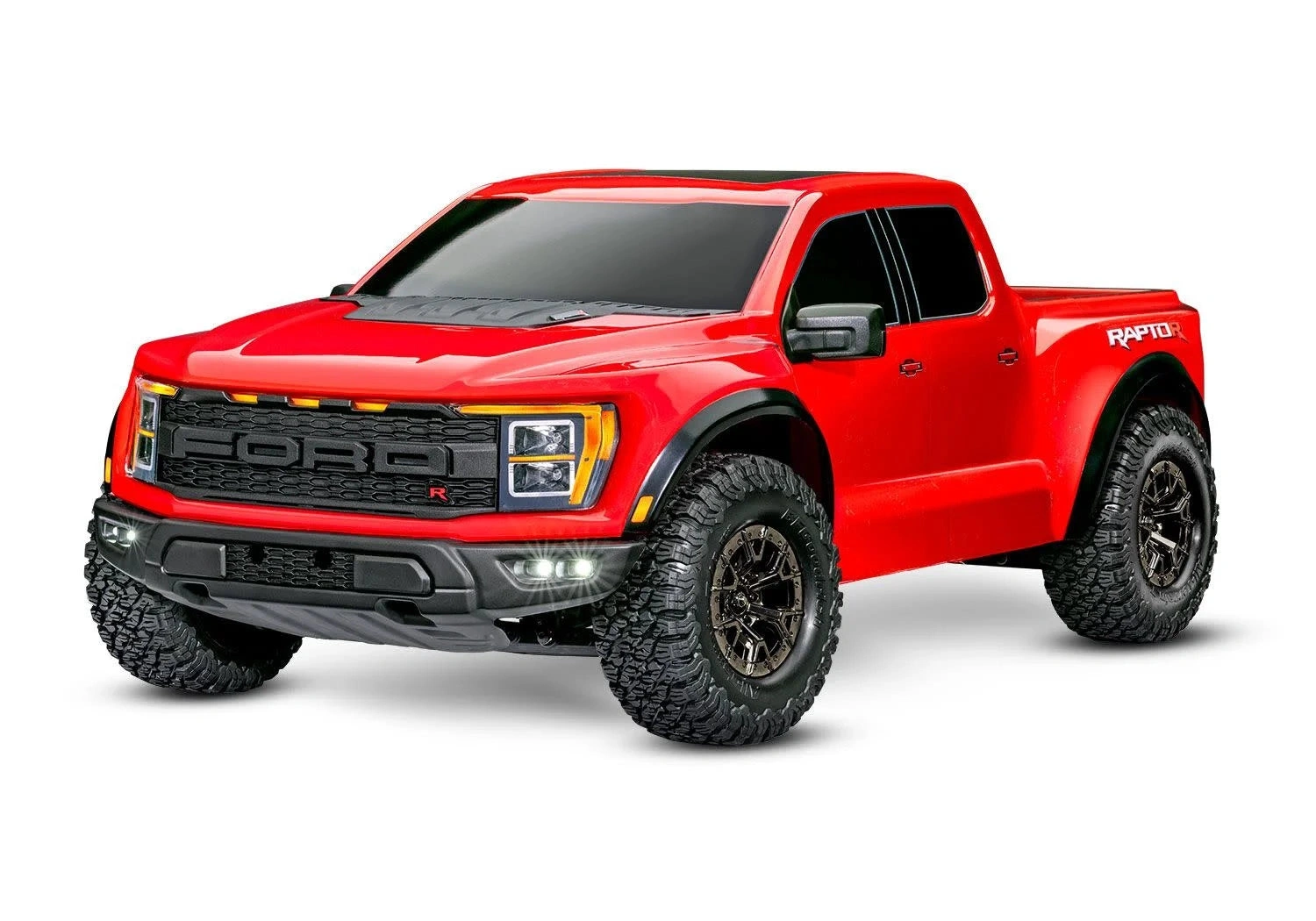

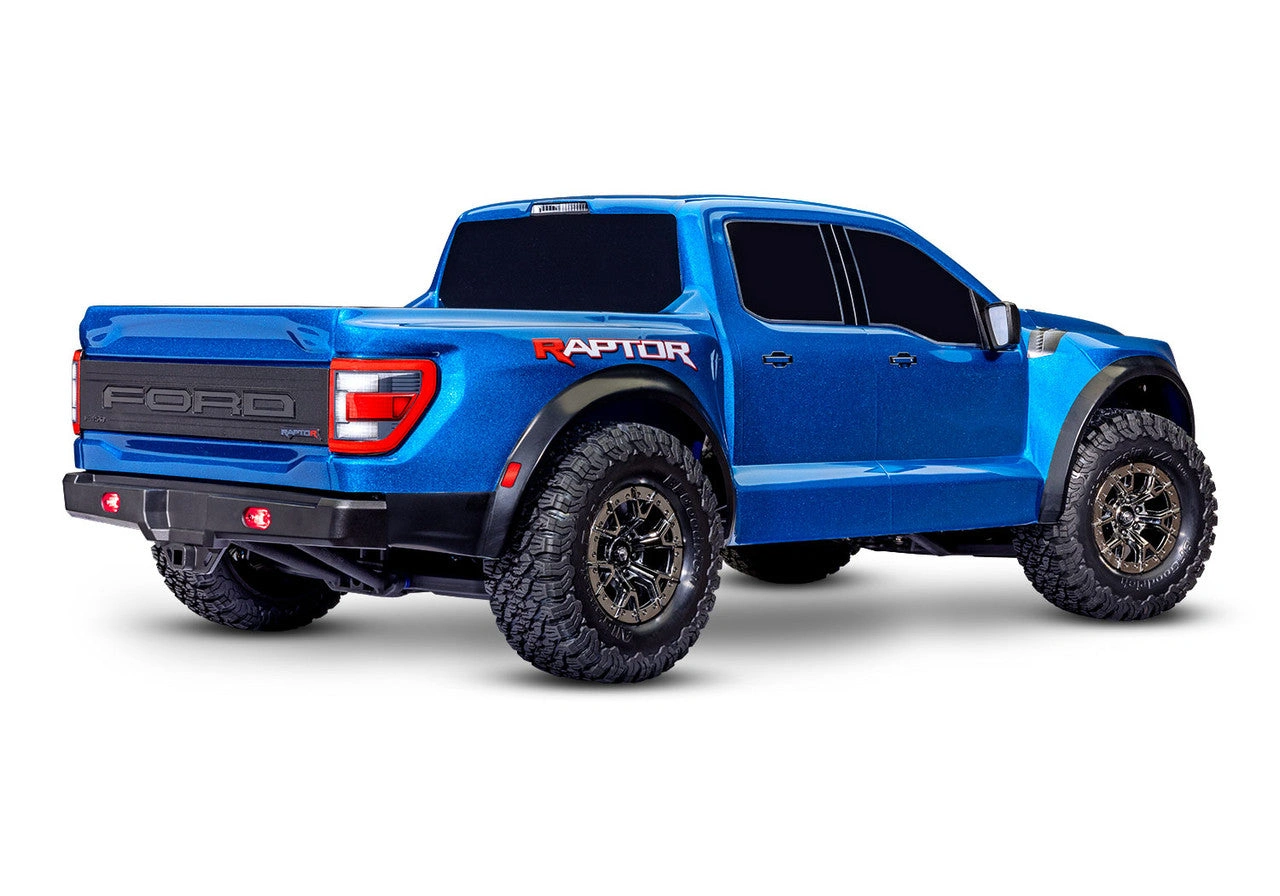

Only Traxxas Pro Scale combines pro-level performance with the look and feel of a real Ford Raptor R. The Traxxas Raptor R stops the show with a Ford-licensed body and molded replica parts for maximum scale authenticity. Velineon® brushless horsepower and an extreme heavy duty 4WD driveline give Raptor R performance credentials to match its stunning looks.

EXTREME HEAVY DUTY UPGRADES

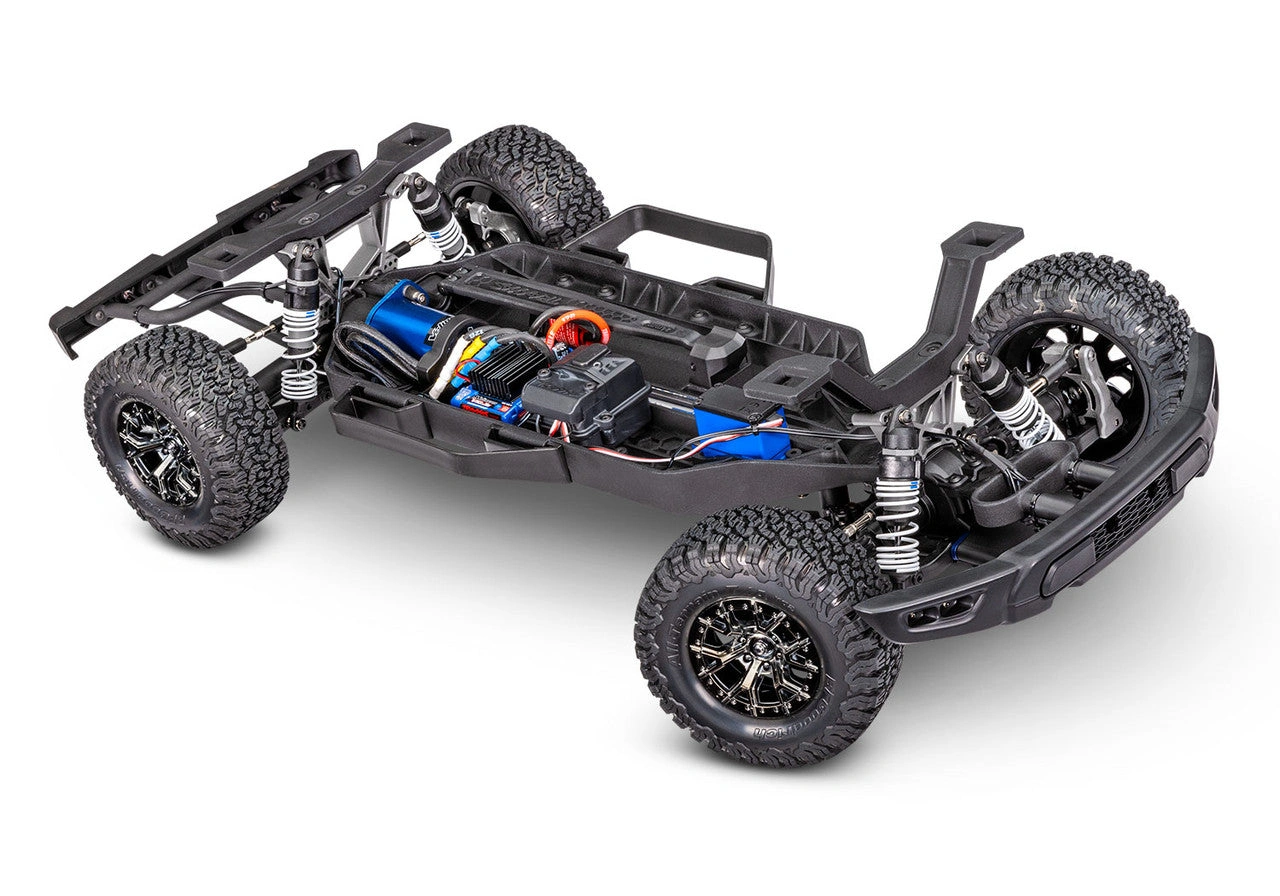

The Extreme Heavy Duty Upgrade Kit comes pre-installed on Raptor R to withstand the brutal punishment of high-power brushless systems. Made from our toughest cold-weather material, Raptor R’s driveshafts and suspension components are beefed up with extra material and overbuilt construction to form a nearly indestructible driveline.

CLIPLESS BODY MOUNTING
High-flying stunts and 60+mph desert speed runs won’t upset Raptor R’s tough clipless body. Locking tabs hold the body tightly, but release in just seconds to access the chassis. Raptor R’s hidden latching system maximizes convenience and scale realism by removing traditional body clips which would interrupt the body’s clean lines.

Larger Diameter BFGoodrich Tires
Oversize BFGoodrich All-Terrain T/A KO2 are 5mm taller than standard Slash tires to replicate look and stance of the full-size Raptor R’s meaty 37″ treads. The replica Ford option wheels with beadlock trim feature the same 2.2″ outer and 3″ inner diameter as conventional short course truck wheels.

Features

Specs

Truck:

• Length: 24.98 inches (637mm)
• Front Track: 11.63 inches (289mm)
• Rear Track: 11.63 inches (289mm)
• Ground Clearance: 1.38 inches (35mm), 2.05 inches (52mm) (center)
• Weight (no battery): 6.05 pounds (2.74kgs)
• Height (overall): 8.91 inches (226mm)
• Wheelbase: 15.11 inches (384mm)
• Shock Length (front): 3.45in (88mm) - Long
• Shock Length (rear): 3.98in (101mm) - XX-Long
• Tire Diameter: 4.5 x 1.9 inches (114mm x 48mm)
• Wheel Diameter: 2.2 inches (56mm) (inner), 3.0 inches (76mm) (outer)
• Speed Control: Velineon VXL-3s (#3355R)
• Motor (electric): 3500KV Velineon Brushless
• Overall Drive Ratio: 37/13 ring/pinion gear ratio
• Differential Type: Hardened steel bevel, sealed, limited slip
• Gear Pitch: 32
• Chassis Structure/Material: Composite tub
• Drive System: Shaft-driven 4WD
• Steering: Dual-bellcrank with integrated servo saver
• Tires: Licensed BFGoodrich All-Terrain T/A KO2 2.2″ pre-glued with foam inserts
• Tire Diameter: 4.31 inches (114 mm) (front and rear)
• Wheels (front/rear): Licensed 2.2″ Ford Factory option wheel
• Wheel Diameter: 2.2 inches (56 mm) outer, 3.0 inches (76 mm) inner
• Radio System: 2-Channel, TQi 2.4GHz Transmitter with TSM receiver
• Servo: 2075 Waterproof Digital Servo (125oz-in torque)
• Top Speed: 60+ MPH with optional included gearing and 3s LiPo
• Skill Level: 1
• Battery Compartment (L/W/H): 165mm (6.49″) x 50mm (1.95″) x 23/26mm (1.02″/0.90″)

Motor:

• Type: Velineon 3500kV sensorless brushless
• Weight: 9.24oz (262g)
• Length: 2.20 inches (56mm)
• Diameter: 1.41 inches (36mm)
• Connector Type: 3.5mm bullet

ESC:

• Input Voltage (cells): 4.8 – 11.1V (4–9 cells NiMH), 2S–3S LiPo
• Case Size: 2.19” (56mm) x 1.54” (39mm) x 1.3” (33mm)
• Weight: 3.84oz (109g)
• BEC Voltage: 6.0 V
• Reverse Delay: Yes, with lockout
• Thermal Protection: Two-stage thermal shutdown
• Ports: Auxiliary fan

Includes

• (1) Raptor R with Velineon VXL-3s ESC and 3500 kV motor
• (1) Quick Start Guide
• (1) TQi 2.4 GHz radio system
• (1) High quality maintenance tools
